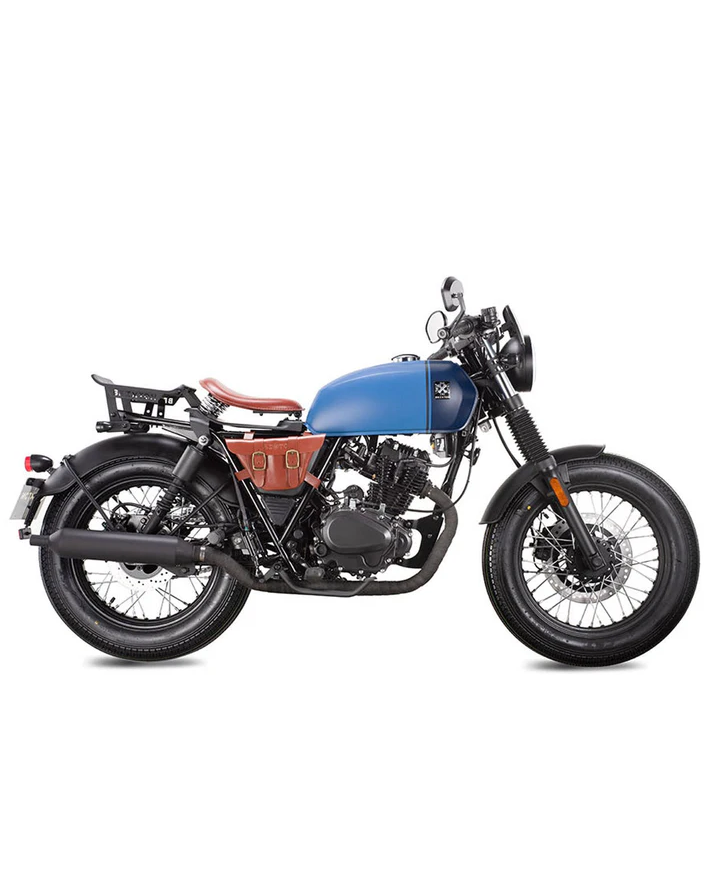

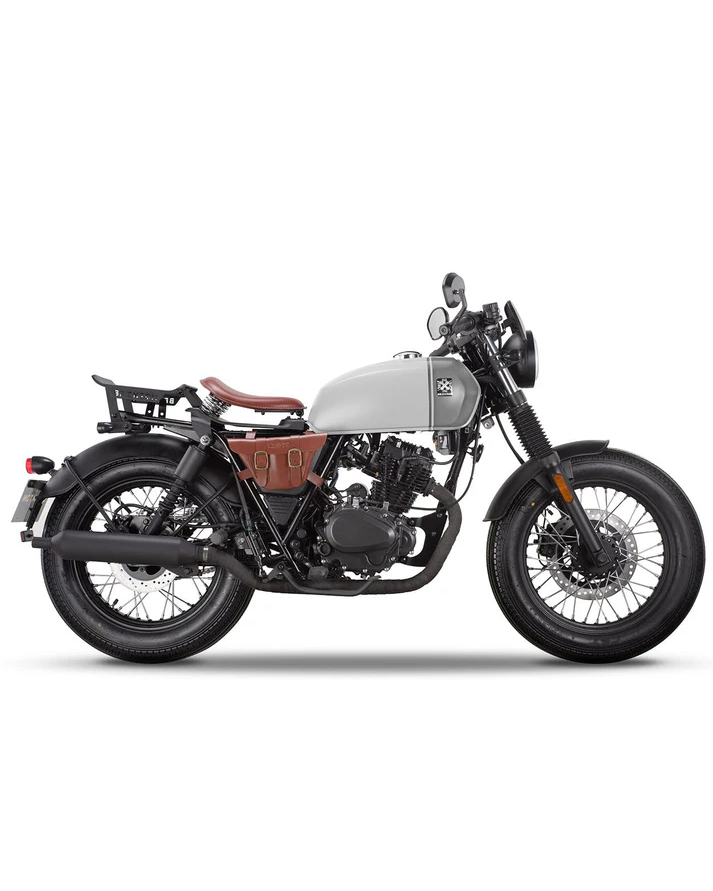

BRIXTON MOTORCYCLES - RAYBURN 125 CBS

Engine Type Single-cylinder, 4-stroke, air-cooled

Maximum Power: ≈ 11.15 HP or 8.2 kW @ 9000 min-1

Maximum torque 9.7 Nm @ 6500 min-1

Transmission 5-speed manual gearbox

Ignition ECU

Electric starter

Displacement 125 ccm

Fuel 95 octane gasoline

Front brakes: Hydraulic disc brake, One brake disc Ø 276 mm

Rear brakes: Hydraulic disc brake, One brake disc Ø 220 mm

Front suspension: Telescopic suspension fork

Rear suspension: Swing arm with double shock absorbers

Front tire size: 4.00-17

Rear tire size: 4.50-17

Dry weight 134 kg

Maximum permissible total weight 304 kg

Length 2020 mm

Width 760 mm

Height 1060 mm

Bench height ca. 800 mm

Places 1

Fuel tank capacity 14.0 L

Speed ​​99 km/h

Fuel Consumption* 2.5 L/100 km

CO2 emissions* 57 g/km

* in accordance with Delegated Regulation (EU) 134/2014, Annex VII
